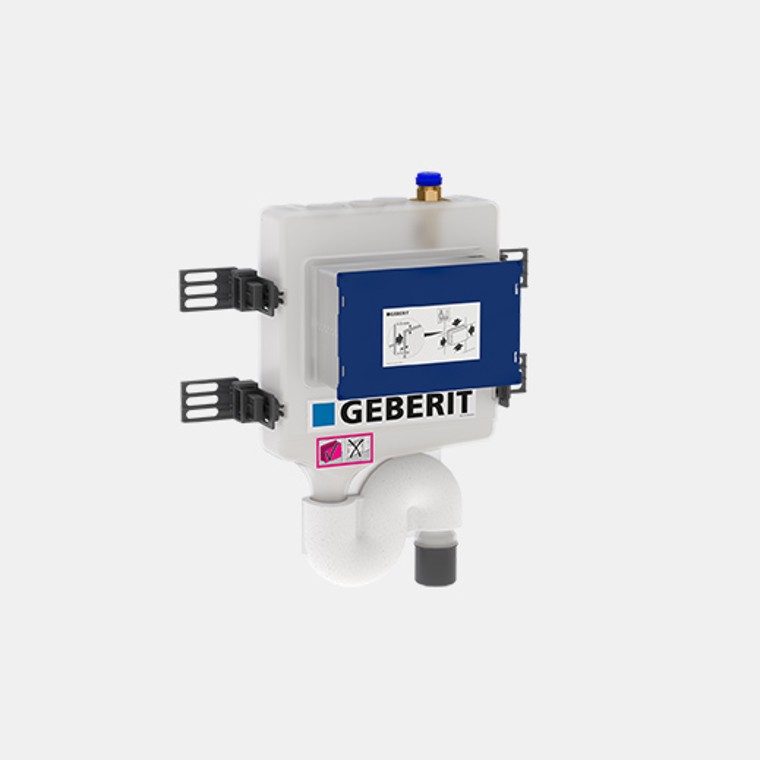

The Geberit hygiene flush unit offers outstanding performance when it comes to hygienic water replacement of cold and hot water. Its compact design makes it easy to install in small spaces in prewall systems, plant rooms, on riser pipes as an exposed solution or at the end of riser pipes.

For different requirements

Various flushing programmes can be implemented as required. The flush performance can be set to up to 2 x 10 litres per minute for cold and hot water.

User-friendly

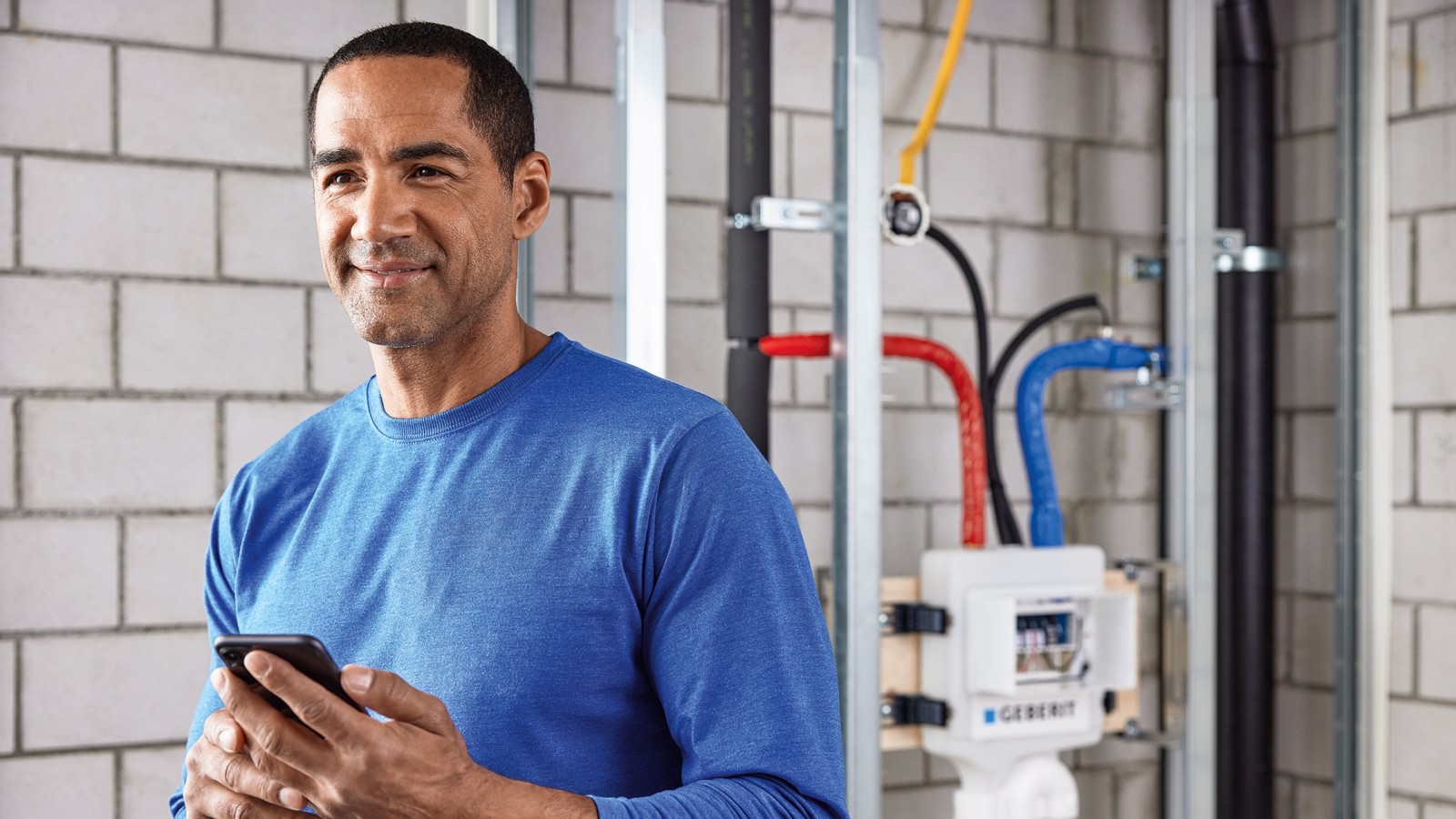

Operation, maintenance and recording with the Geberit Control app.

Different designs

The cover plates are available in different design variants: stainless steel, white alpine, bright chrome-plated and matt chrome-plated.

Prevention of unpleasant odours

Connection to the drainage system via the integrated odour trap.

Verified sound insulation

The product fulfils the requirements for tap noise group I in accordance with EN ISO 3822-1 as well as sound insulation requirements in accordance with DIN 4109 and VDI 4100.

Connection-safe

Declaration of conformity AS-0605CQ0214 confirms connection safety in accordance with DVGW worksheet W 540.

Safety

Integrated drain monitoring with interruption of the water supply during backpressure from the drainage system.

Connection to building automation system

The Geberit hygiene flush unit can be controlled via Digital I/O and BACnet/IP interfaces and directly by means of solenoid valves.

Intelligent

Please choose an information button in the image

All benefits at a glance

Operation: with building automation system Sensors: for temperature and volumetric flow rate with 4-20 mA current input card Connection to building automation: with 24 V (open/closed) Hygiene flush programmes: customised by building automation system

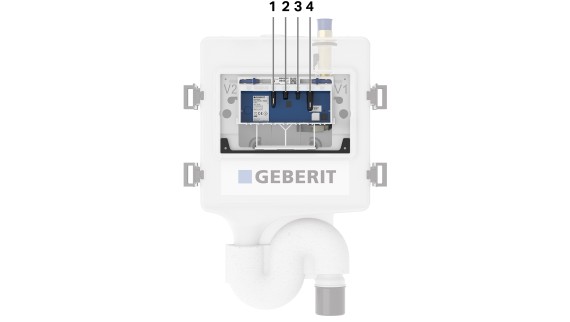

Control: Connections in the control unit 1 Valve 2 (connection for cold or hot water) 2 12 DC 3 Valve 1 (connection for cold or hot water only) 4 Digital I/O

Operation: With the Geberit Control app Sensors: none Connection to building automation systems: with Digital I/O Hygiene flushing programmes: Time flush mode, interval flush mode

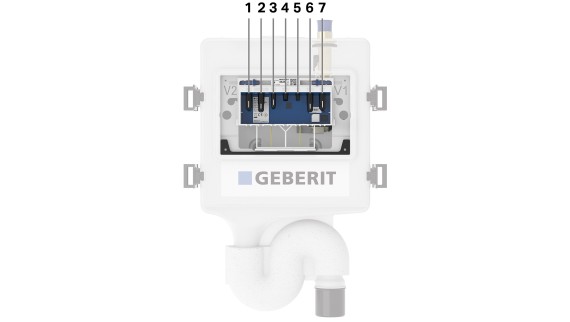

Control: Connections in the control unit 1 Sensor 2 2 GEBUS 3 Valve 2 4 12 DC 5 Valve 1 6 Digital I/O 7 Sensor 1

Operation: With the Geberit Control app Sensors: analogue sensors Connection to building automation systems: with Digital I/O or BACnet/IP through Geberit Gateway Hygiene flushing programmes: Time flush mode, interval flush mode, temperature flush mode

Geberit HS10, HS30 and HS50 hygiene flush unitsAll options for large flush volumes

All benefits at a glance

Different versions for different needs

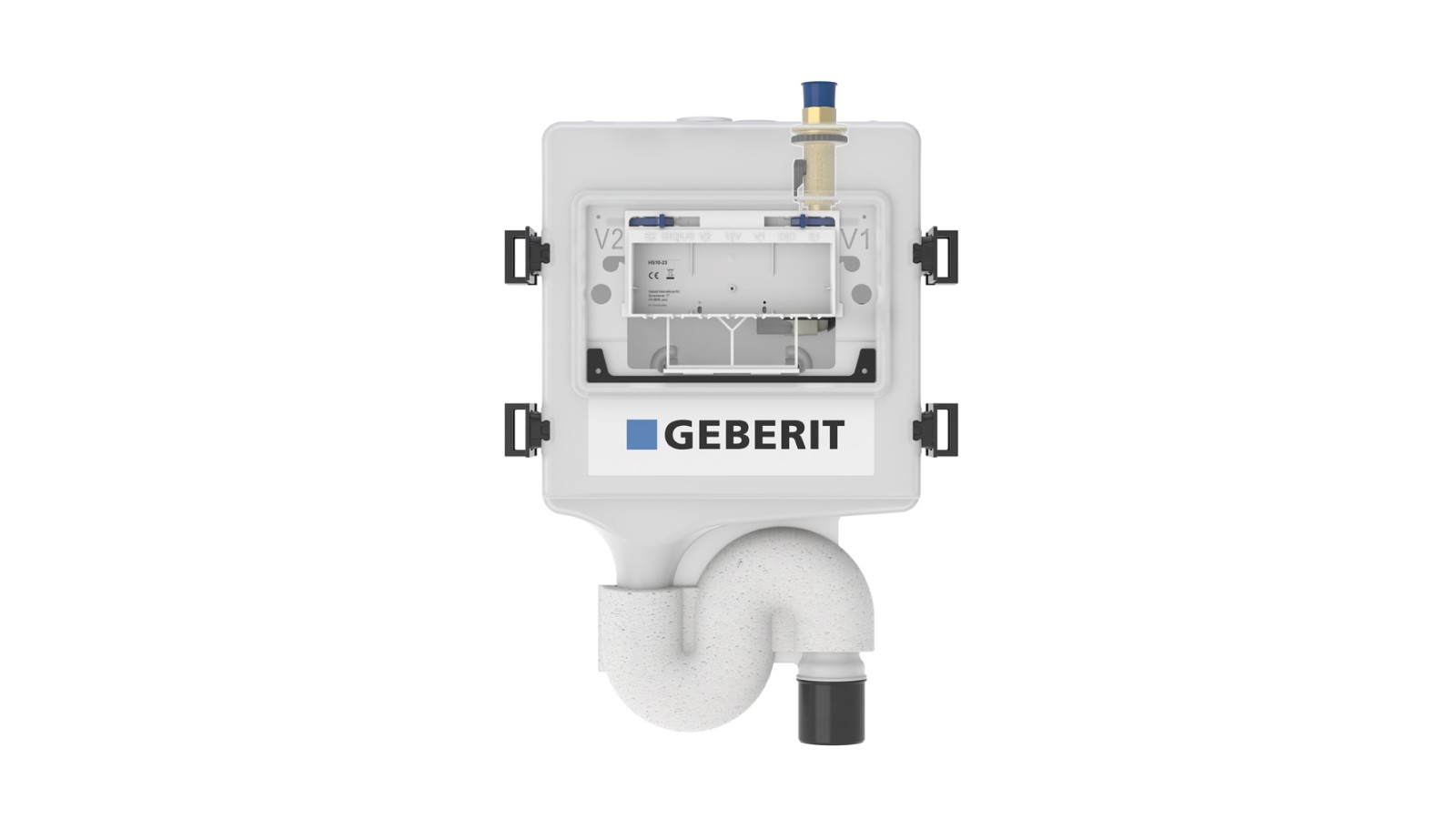

Geberit HS10 hygiene flush unit

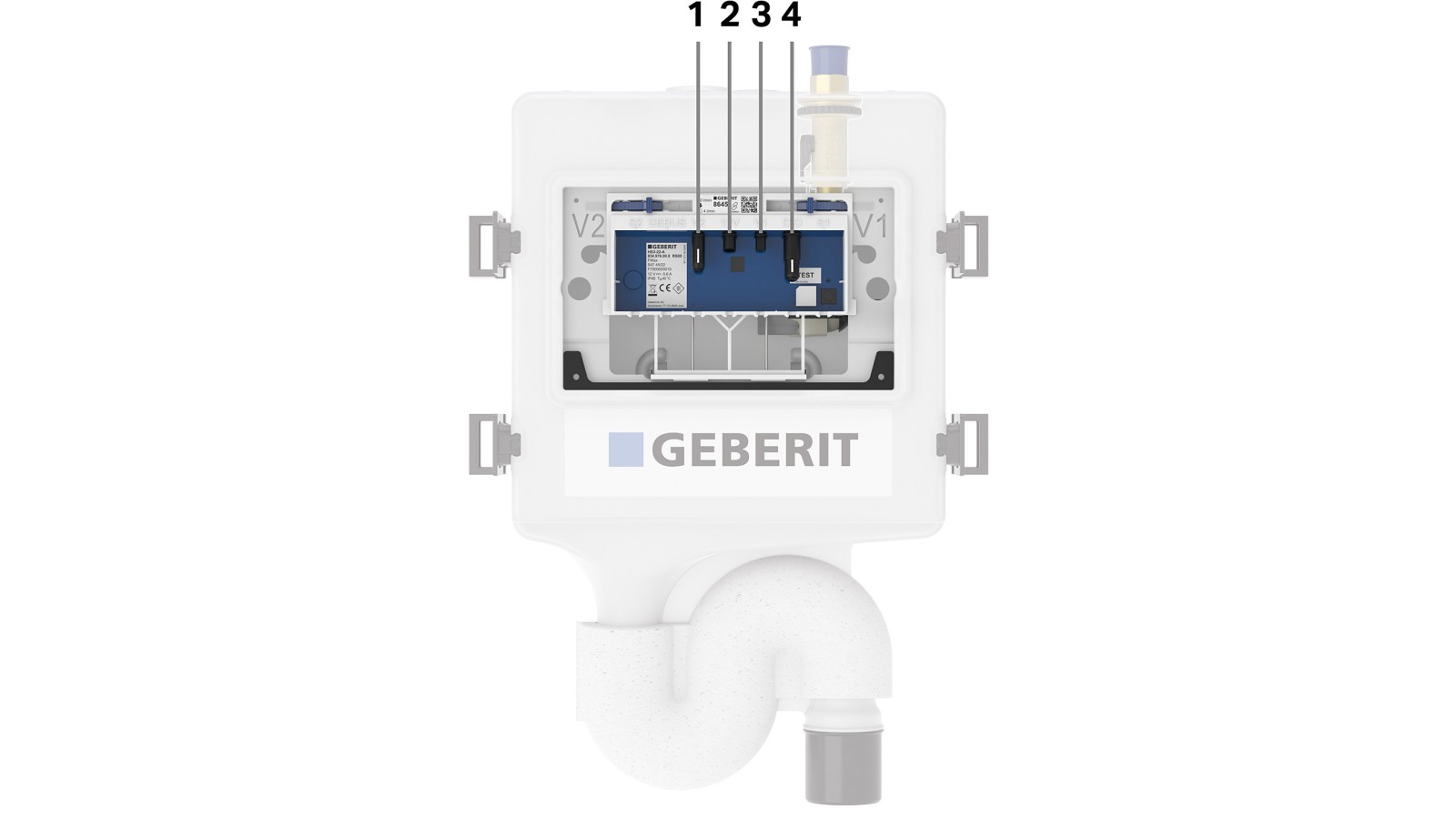

Geberit HS30 hygiene flush unit

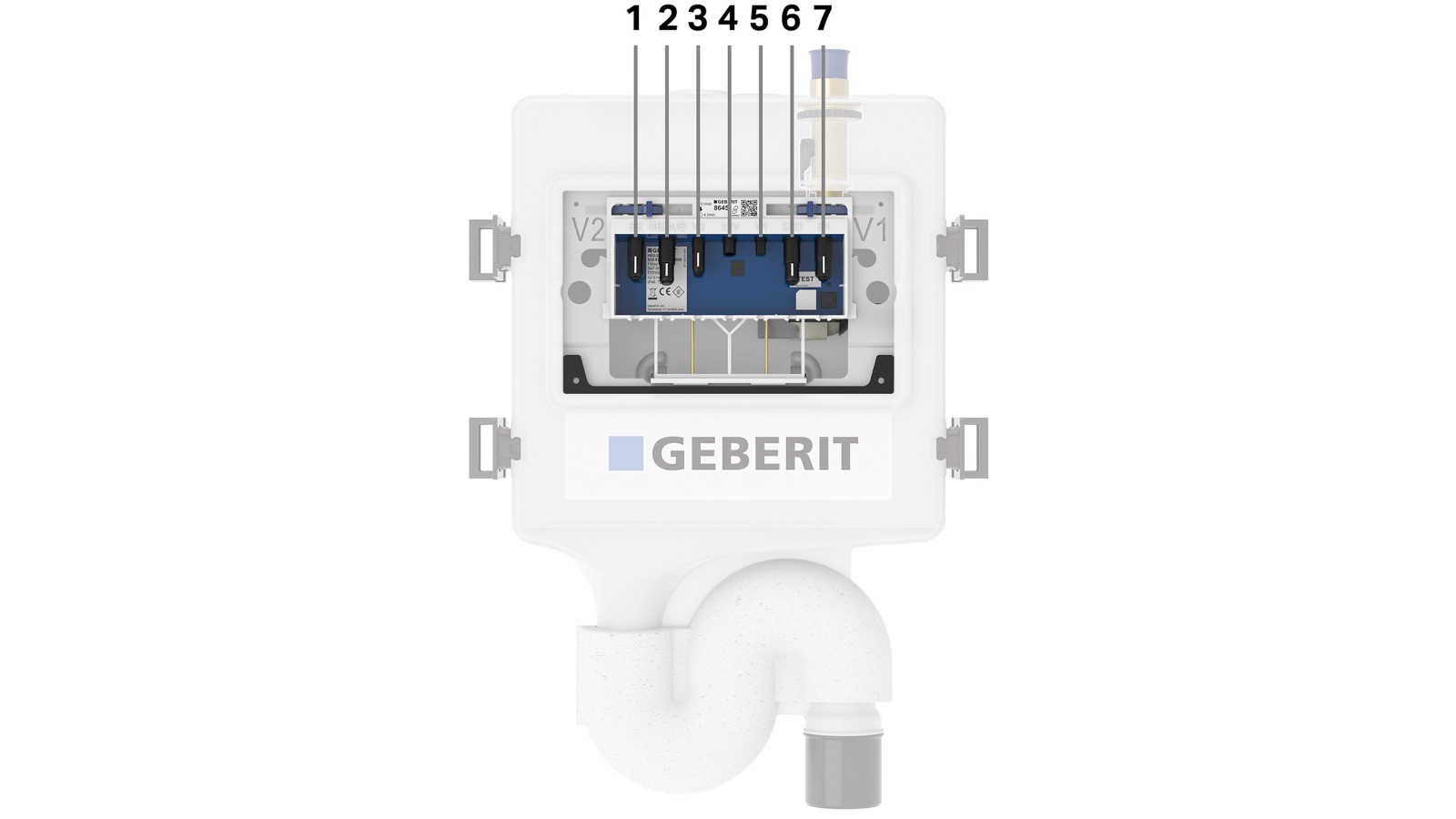

Geberit HS50 hygiene flush unit
